Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminium Plate | Thickness: | 0.8mm To 2.0mm |
|---|---|---|---|
| Aperture: | 40X80mm/50X100mm |
In architectural building, the uses of Aluminum Expanded Metal Mesh products are becoming popular. A variety of architectures made of expanded metal in the form of sheets or coils are used for wall construction. Using the latest technology made by cutting and expansion, the aluminum expanded metal are more lightweight but strong bearing capacity. Conventional wall construction is a major net steel diamond-shaped hole, used in high-rise building, civilian room, plants and other large plastering works for a mortar substrate mount strong, cracking, earthquake and other characteristics of a modern architectural building in the new metal building materials.
Width: maximum up to 3M.
Thickness: For Aluminum,maximum up to 12mm
Aperture size: 2mm × 1mm ---300mm × 120mm.
Strand width: 0.5mm--50mm.
Specification of Expanded Metal Mesh
| Specification of Expanded Metal Mesh | |||||||
| Sheet Thickness | Opening in Width mm |
Opening in Length mm |
Stem | Roll Width mm |
Roll Length mm |
Weight kg/m2 |
|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 | |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 | |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 | |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 | |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 | |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 | |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 | |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 | |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 | |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 | |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 | |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 | |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 | |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 | |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 | |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 | |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 | |
| 8 | 50 | 100 | 8 | 2 | 2.1 |
28.26 |
|
Reference Photos
|
|
| Oxide Coating Al Expanded Metal Mesh | Oxide Coating Al Expanded Metal Mesh |
|
|
| Al Expanded Metal | Aluminium Expaned Metal Sheet |
|
|
| Aluminium Expanded Metal Sheet | Aluminium Expanded Metal Sheet |
|
|

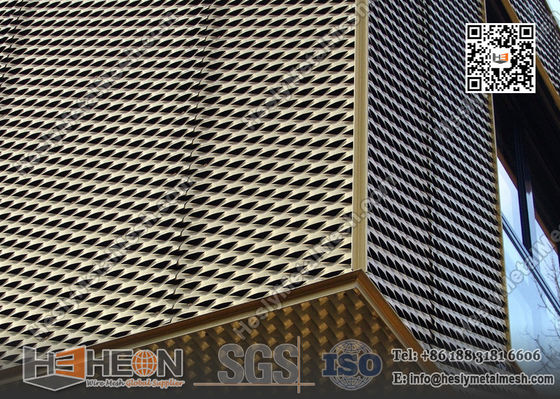

| Aluminium Expanded Metal Facade | Aluminium Expanded Metal Facade |
