Recoverable Defensive Barriers

China Recoverable Defensive Barriers supplier
Recoverable Defensive Barriers supplier Recoverable Defensive Barriers supplier Recoverable Defensive Barriers supplier Recoverable Defensive Barriers supplier Recoverable Defensive Barriers supplier

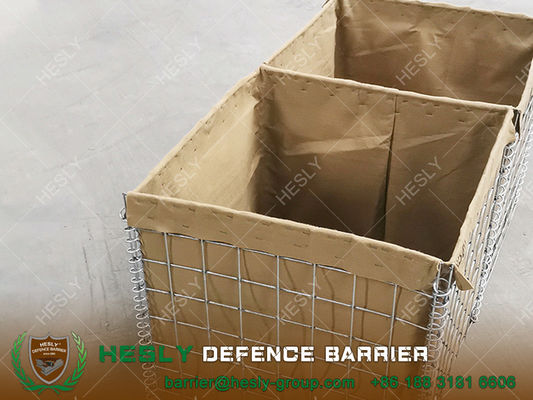

Large Image :  Recoverable Defensive Barriers

Product Details:

Place of Origin: HeslyBarrier, CHINA
Brand Name: HESLY
Certification: ISO9001
Model Number: MDB1-12R

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: US$ 30.00 to US$50.00/unit
Packaging Details: Pallet and plastic film
Delivery Time: 12 working days/40' container
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 30units to 600units /day
Contact Now
Detailed Product Description
Material: Hot-Dip Gal. Wire Or Galfan Wire & Geotextiel Welded Mesh Panel: 4.0/5.0 X (3"X3")
Geotextile Color: Beige, Green, Grey, White Etc Cell Unit: 61X61X61cm To 221X213X213cm
Application: Military Defence, Flood Barrier Etc


Brief Introduction
The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
About the newest Recoverable Defensive Barriers
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard defense barrier units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable gabion barrier units are deployed in exactly the same way as the standard defence barriers. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.

Military defence barrier China Recoverable Gabion Barriers CHINA Military Gabion Barrier Factory
Recoverable Bastion Barrier HESLY Defensive Barrier Military Gabion Barrier
All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Applications include:

  • Perimeter security
  • Defensive barriers
  • Equipment revetments
  • Ammunition compounds
  • Personnel bunkers
  • Observation points
  • Guard posts
  • Ammunition and explosives stores
  • Contraband search areas
  • Highway checkpoints
  • Border crossing checkpoints
  • Protecting existing structures
  • Traffic management
  • Hostile vehicle mitigation


General Specifications
military defensive barrier
General Specification Sheet - HESLY Defensive Barriers
Model Height Width Length Structure
MDB-1 5442 1.37m(54") 1.06m(42") 10m(32'9") 5cells+4cells
MDB-2 2424 0.61m(24") 0.61m(24") 1.22m(4') 2cells
MDB-3 3939 1.00m(39") 1.00m(39") 10m(32'9") 5cells+5cells
MDB-4 3960 1.00m(39") 1.52m(60") 10m(32'9") 10cells+10cells
MDB-5 2424 0.61m(24") 0.61m(24") 3.05m(10') 5cells
MDB-6 6624 1.68m(66") 0.61m(24") 3.05m(10') 5cells
MDB-7 8784 2.21m(87") 2.13m(84") 27.74m(91') 4cellsX2+5cells
MDB-8 5448 1.37m(54") 1.22m(4') 10m(32'9") 5cells+4cells
MDB-9 3930 1.00m(39") 0.76m(30") 9.14m(30') 6cells+6cells
MDB-10 8760 2.21m(87") 1.52m(60") 32.5m(100') 5cellsX6
MDB-11 4812 1.22m(4') 0.30m(12") 1.22m(4') 2cells
MDB-12 8442 2.13m(84") 1.06m(42") 33m(108') 5cellsX6
NOTE: OEM/ODM is available. Barrier dimensions can be custom-made.


Reference Photos

China Military Defensive Barrier HESCO Bastion Barrier China Exporter
Illustration  Defensive Barrier Military Gabion Barrier
Mil7 HESCO Barrier China Factory Military Defensive Gabion Barrier China Manufacturer
HESLY Defensive Barrier (Factory) Military Defensive Barriers China Exporter
China HESCO Barrier Factory HESCO Bastion Barrier China Factory/exporter
HESLY Defensive Barrier Factory HESLY Defensive Barrier Factory
HESLY Defensive Barrier China Factory Military Gabion Barrier China Exporter
HESLY Defensive Barrier Factory HESLY Defensive Barrier
HESLY Defensive Barrier China Factory Military Gabion Barrier China Exporter
Military Defensive Barrier Army Bastion Barrier
