Welded Mesh Gabion Basket

China Welded Mesh Gabion Basket supplier
Welded Mesh Gabion Basket supplier Welded Mesh Gabion Basket supplier Welded Mesh Gabion Basket supplier Welded Mesh Gabion Basket supplier Welded Mesh Gabion Basket supplier

Large Image :  Welded Mesh Gabion Basket

Product Details:

Place of Origin: HESLY Gabion Barrier Factory, CHINA
Brand Name: HESLY
Certification: ISO9001 | SGS
Model Number: HWG-450211

Payment & Shipping Terms:

Minimum Order Quantity: 200 sets
Price: US$10.00 to 26.00/set
Packaging Details: Pallet
Delivery Time: 7 days/20' container
Payment Terms: T/T, L/C, D/P at sight, , Western Union
Supply Ability: 600 sets/day
Detailed Product Description
Material: Galvanised Wire Wire THK: 3.0mm To 5.0mm
Mesh Aperture: 50X50mm, 50X100mm, 75X75mm, 100X100mm Etc. Connection Fittings: Spring Wire / Clips
Optional Coating: PVC Coated

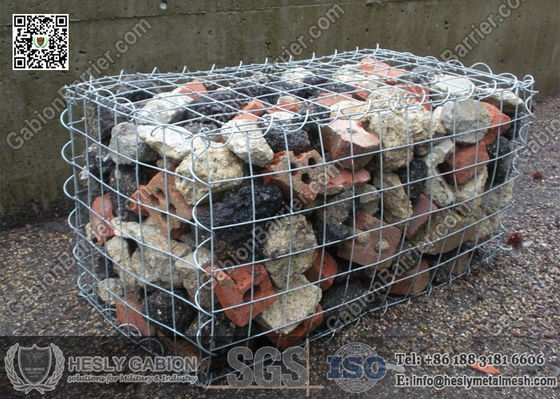

Welded Mesh Gabion Basket

Whereas our Double Twist woven steel wire mesh gabions are used in demanding engineering and geotechnical applications, welded gabions are popular in architectural applications, or low height structures where there is minimal risk of differential settlement.


Welded Mesh Gabion BasketThe HeslyGabion® supply WELDED MESH GABIONS ... the highest-quality welded wire mesh products for soil retention, soil stabilization, erosion control, flood management, along with various architectural and landscaping applications

Welded wire mesh construction insures that each point of contact in the grid pattern is welded to form a rigid connection, making this type of gabion material important in achieving a flat, sharp appearance. The added stiffness provided by welded wire mesh and corner stiffeners also make rock filling less cumbersome

The basic advantage of HESLY-WELD welded gabions over twisted wire gabions is they assemble faster
resulting in substantial labor savings.



The philosophy of the Welded gabion is similar to our woven units; our welded gabion units consist of panels of quality welded wire mesh, secured together to form a gabion unit, which is filled on site with gabion stone to form the appropriate structure.



Architectural and landscaping are popular uses for these units, as they have a formal appearance when filled correctly with quality stone. Our welded mesh gabion units have been successfully used within free standing walls, cladding and other features within the built environment.



As with all gabion solutions, they have to be designed to meet the requirements of the project.

Welded mesh gabion units should not be used in watercourses due to the risk of differential settlement.

Advantages of HeslyGabion

PRE-ASSEMBLED IN FACTORY
HESLY Gabions come pre-assembled in the factory with hinged panels folded flat for shipping and ease of unloading. They are easily expanded and ready to fill with rocks

QUICKER ASSEMBLY
Once expanded and place in position, HESLY Gabions are securely interconnected with corkscrew type spiral binders at each vertical junction. Time studies have shown that welded wire baskets install at a rate that reduces labor by at least 40% compared to twisted wire gabions

BETTER SHAPE CONTROL
HESLY-WELD Gabions provide shape control superior to twisted or woven wire fabric. Internal diaphragms and preformed corner stiffeners brace adjacent panels and add stiffness for more shape control.

ASTM A974-97
HESLY-WELD Gabions and mattresses meet ASTM A974-97 requirements with regard to the materials of construction and method of manufacture.
ASTM A974-97 also establishes minimum requirements for pre-assembly of the baskets and mattresses for shipping. The steel wire mesh used in constructing a HESLY-WELD gabion can be plain steel, stainless steel, galvanized or galvanized and PVC coated. The PVC coated gabions are typically used in applications where greater durability or an environmentally blended appearance is desired.

Low Cost
Gabion structures using HESLY-WELD Gabions can be built almost anywhere with unskilled labor and often without the use of heavy equipment


Environment Friendly
HESLY-WELD™ Gabions have less impact on the environment than concrete and other construction materials



Aesthetically Pleasing
HESLY-WELD Gabions have a natural appearance and furthur enhanced when combined with plants & vegetation growth.



Durable
Low carbon welded wire mesh ensure maximum strength and PVC coated wire offers double the protection against corrosion than galvanized finish wire



Adaptable
HESLY-WELD Gabions are designed for high velocity water flow. Spaces between rocks help dissipate energy and provide positive drainage. They are often used in environmentally sensitive locations such as marine applications



Long Lasting
HESLY-WELD Gabions can last a lifetime, depending on the environment, application and surface coating



Strong
The fastening materials (heavy formed spiral binders and lacing wire) ensure that the units act as one strong monolithic structure.



Flexible
HESLY-WELD Gabions can fit into tight spaces and accommodate significant soil settlement. Winter freeze and thaw conditions have minimal impact to its structure



Low Maintenance
HESLY-WELD Gabions are virtually maintenance free when erected and installed properly

Permeable
Unlike rigid steel and concrete retaining structures, HESLY-WELD Gabions are resistant to hydrostatic pressure build up in earthen or marine environments.
