| Material: | Stainless Steel, Carbon Steel | Steel Strip: | 2.0X50mm |
|---|---|---|---|
| Hexagonal Hole: | 50mm |
HESLY’s Hex Metal Mesh range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY’s Hex Mesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
|
|

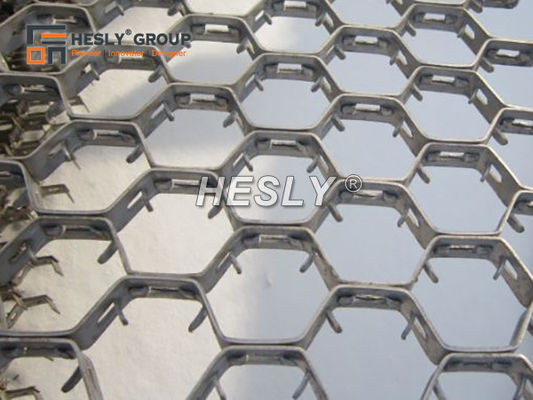

| Hex Metal with Lances | Hex Mesh with bonding holes |
Typical Service Temperature of Different Material for Hexmesh:
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
| HESLY-hex Metal ordinary specifications | |||||
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
|
|
