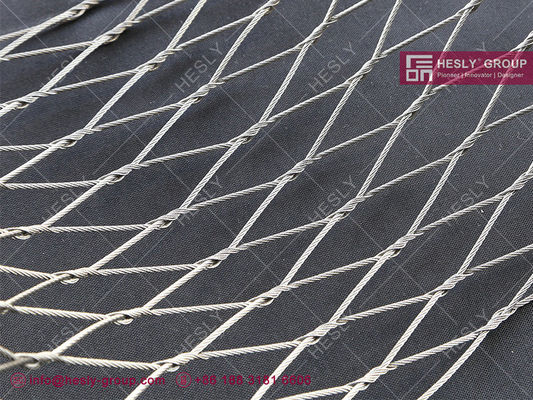

SS316 / SS304 2.0mm Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening

China SS316 / SS304 2.0mm  Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening supplier
SS316 / SS304 2.0mm  Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening supplier SS316 / SS304 2.0mm  Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening supplier SS316 / SS304 2.0mm  Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening supplier SS316 / SS304 2.0mm  Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening supplier

Large Image :  SS316 / SS304 2.0mm Stainless Steel Knotted Cable Mesh with 80X80mm Mesh Opening

Product Details:

Place of Origin: HESLY Group, CHINA
Brand Name: HESLY
Certification: ISO9001
Model Number: H-GSW-2080K

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Price: US$40.00 to 55.00/square meter
Packaging Details: Plywood Box
Delivery Time: 7 working days/1000 square meters
Payment Terms: T/T, L/C, D/P at sight, Western Union
Supply Ability: 200 square meters/day
Contact Now
Detailed Product Description
Material: AISI316 Stainless Steel Wire Cable Structure: 7X7, 7X19
Style: Knotted Cable Dia.: 1.5mm To 3.2mm
Aperture: 20X20mm To 300X300mm Application: Facade/Safety Protection/Zoo Mesh

SS316 / SS304 2.0mm Stainless Steel Knotted Rope Mesh

Stainless Steel Knotted Cable/Knotted Mesh is made from high tensile stainless steel of 304, 316, 304L, 316L. And the two main rope constructions of stainless steel ropes are 7 × 7 and 7 × 19, and 1 × 7 and 1 × 19 are also supplied. The standard angle is 90°. The mesh cannot hurt hands for its good softness. And it will not hurt animals and birds either. So it is widely used as stainless steel zoo mesh to protect animals, and it can make the visitors enjoy animals free of danger. Besides, it is used as stainless steel aviary mesh and bird cages to make birds live comfortably. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferruled rope mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as stainless steel rope mesh green wall and stainless steel balustrade mesh.

Both the cable and components are made from AISI 316 material group. And also you can choose AISI304 or hot dipped galvanised wire cable.  Chinese aisi316 stainless steel wire cable mesh supplier

Features and Advantages

  • Light weight and high flexibility.



Stainless steel ferrule rope mesh is light, and its width, length, rope diameter and opening size can be modified. What's more, diagonal and irregular shapes are also available. So stainless steel ferrule rope mesh is easy to install in any conditions and it is widely used in many places.

  • High strength, resistant to fatigue and impact.

Ferrules combine stainless steel ropes firmly, making the mesh form a strong whole. Therefore, stainless steel ferrule rope mesh is resistant to fatigue and impact.

  • Good softness

The rope construction is 7 × 7 or 7 × 19, making stainless steel knotted rope mesh very soft. Therefore, it can be curved and folded easily, which makes it effortless to transport. And this property also makes it easy to install. Above all, it will not hurt hands.

  • Outstanding elasticity and buffer ability.

Stainless steel knotted rope mesh has good elasticity and buffer ability. Therefore, it is resistant to impact from animals when used in zoo. Above all, neither animals nor stainless steel knotted rope mesh will be hurt. And it can provide a safe and comfortable living environment for animals and birds.

  • Excellent Visibility

Stainless steel knotted rope mesh has unique rhombic openings which makes the product have good visibility. Therefore, stainless steel knotted rope mesh is suitable for zoo mesh and bird cages. And stainless steel knotted rope mesh allows visitors to watch animals better and prevents visitors from being hurt by animals effectively. In other words, stainless steel knotted rope mesh shortens the distance between visitors and animals.

  • Maintenance-free and environmentally friendly

Stainless steel knotted rope mesh can be used in any climate and environment. And it is resistant to rust although it is subject to violent sunlight, rain, snow and fog. So its service life can be up to more than 30 years. Besides, it can be used repeatedly. Above all, it doesn't need maintenance after installation.

Technical Sheet Of Stainless Steel Wire Rope Mesh

Ref No. Rope Construction Rope Dia. Aperture Breaking Strength
Inch. mm Inch mm KN
H-SW32120K 7X19 1/8 3.2 4.7"X4.7" 120x120 7.38
H-SW32102K 7X19 1/8 3.2 4"X4" 102X102 7.38
H-SW3290K 7X19 1/8 3.2 3.6"X3.6" 90X90 7.38
H-SW3276K 7X19 1/8 3.2 3"X3" 76X76 7.38
H-SW24100K 7X19 1/8 3.2 2"X2" 51X51 7.38
H-SW24102K 7X7 3/32 2.4 4"X4" 102X102 4.18
H-SW2490K 7X7 3/32 2.4 3.6"X3.6" 90X90 4.18
H-SW2476K 7X7 3/32 2.4 3"X3" 76X76 4.18
H-SW2460K 7X7 3/32 2.4 2.4"X2.4" 60X60 4.18
H-SW2451K 7X7 3/32 2.4 2"X2" 51X51 4.18
H-SW2076K 7X7 5/64 2.0 3"X3" 76X76 3.17
H-SW2060K 7X7 5/64 2.0 2.4"X2.4" 60X60 3.17
H-SW2051K 7X7 5/64 2.0 2"X2" 51X51 3.17
H-SW2038K 7X7 5/64 2.0 1.5"X1.5" 38X38 3.17
H-SW1676K 7X7 1/16 1.6 3"X3" 76X76 2.17
H-SW1651K 7X7 1/16 1.6 2"X2" 51X51 2.17
H-SW1638K 7X7 1/16 1.6 1.5"X1.5" 38X38 2.17
H-SW1630K 7X7 1/16 1.6 1.2"X1.2" 30X30 2.17
H-SW1625K 7X7 1/16 1.6 1"X1" 25X25 2.17
H-SW1251K 7X7 3/64 1.2 2"X2" 51X51 1.22
H-SW1238K 7X7 3/64 1.2 1.5"X1.5" 38X38 1.22
H-SW1230K 7X7 3/64 1.2 1.2"X1.2 30X30 1.22
H-SW1225K 7X7 3/64 1.2 1"X1" 25X25 1.22
H-SW1220K 7X7 3/64 1.2 0.8"X0.8" 20X20 1.22
NOTE: Other specifications can be made as per requirements.
