| Material: | Stainless Steel Wire | Wire Dia: | 0.8 To 15.0mm |
|---|---|---|---|
| Hole Style: | Square/Rectangule | Edge Style: | Hook/Flat/Banding |
Materials: Stainless Steel AISI304, 316, 316L.
Wire diameter: 0.5mm-15mm
Opening size: 2mm-150mm
Weaving and Characteristics: Crimped first then weaved, two-way alternate-bending, bending engaged upon, flattened bending, two-bending, bending wave at one-way.
Uses: Widely used in industry ,construction, filtering sand ,filtering liquid and gas ,also can be used in protection of mechanical annex.
Specifications: Please refer to lists below for reference. Sizes not listed available at customers request.
| Wire Gauge (BWG) | Aperture Size (mm) | Wire Dia. (mm) | Weight(Kg/m²) |
| 8 | 30 | 4.06 | 6.00 |
| 8 | 25 | 4.06 | 7.00 |
| 8 | 20 | 4.06 | 8.00 |
| 8 | 15 | 4.06 | 1.00 |
| 8 | 12 | 4.06 | 13.000 |
| 8 | 10 | 4.06 | 15.000 |
| 10 | 30 | 3.25 | 4.00 |
| 10 | 25 | 3.25 | 4.70 |
| 10 | 20 | 3.25 | 5.80 |
| 10 | 15 | 3.25 | 7.40 |
| 10 | 10 | 3.25 | 10.000 |
| 12 | 30 | 2.64 | 2.70 |
| 12 | 12 | 2.64 | 3.20 |
| 12 | 20 | 2.64 | 3.90 |
| 12 | 15 | 2.64 | 5.00 |
| 12 | 10 | 2.64 | 7.00 |
| 14 | 20 | 2.03 | 2.38 |
| 14 | 15 | 2.03 | 3.10 |
| 14 | 12 | 2.03 | 3.70 |
| 14 | 10 | 2.03 | 4.35 |
| 14 | 8 | 2.03 | 5.22 |
| 14 | 6 | 2.03 | 6.52 |
| 14 | 4 | 2.03 | 8.68 |
| 14 | 3 | 2.03 | 10.400 |
| 16 | 15 | 1.63 | 2.03 |
| 16 | 10 | 1.63 | 2.90 |
| 16 | 8 | 1.63 | 3.50 |
| 16 | 6 | 1.63 | 4.40 |
| 16 | 4 | 1.63 | 5.99 |
| 18 | 12 | 1.22 | 1.43 |
| 18 | 10 | 1.22 | 1.68 |
| 18 | 8 | 1.22 | 2.05 |
| 18 | 6 | 1.22 | 2.62 |
| 18 | 4 | 1.22 | 3.62 |
| 18 | 3 | 1.22 | 4.48 |
| 20 | 12 | 0.91 | 0.82 |
| 20 | 10 | 0.91 | 0.96 |
| 20 | 8 | 0.91 | 1.18 |
| 20 | 5 | 0.91 | 1.78 |
| 20 | 4 | 0.91 | 2.15 |
| 20 | 3 | 0.91 | 2.69 |
1. PRODUCT USAGE:
The QUARRY sorting wire mesh is used for vibrating stones, sand, gravel, limestone, rocks, mortar, cement, fertilizer, iron ore, aggregate, etc.
2. APPLICABLE SCOPE:
The sorting wire mesh is used in sorting industry (mine, coal and quarry), for vibrating screen and round roll screen, at asphalt mixing plant for road building, fertilizer factory, steel mill, etc.
3. PRODUCT ADVANTAGE:
We have a thorough quality control system from material to final product. Including
- We can do SGS Inspection for the material
- steel wire tensile strength test,
- steel wire diameter measure,
- inspection of crimping wheels every time after finishing one machine of woven mesh screen,
- Weave a small sample before mass producing the wire mesh,
- Using cutting machine to cut the mesh edge,
- Regular maintenance record
- Regular testing the measure tools
- We will get tax refund after exporting the metal mesh
- Our worker's wage is in the low level internationally
- Our production level has surpassed the overseas.
4. PRODUCT LIFETIME:
Our high tensile screen meshes are able to sieve 300 tons of stones, and keep 400 hours continuously.
|
|

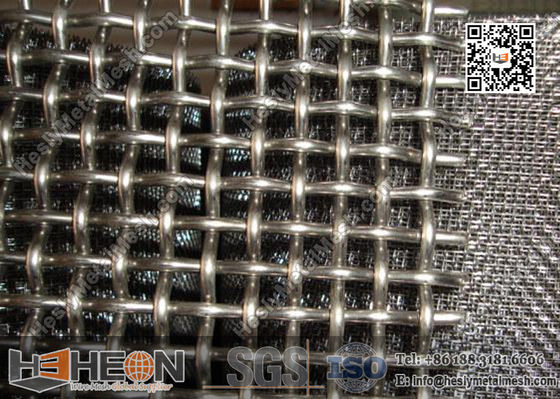

| Stainless Steel Crimped Wire Mesh | Stainless Steel Ming Sieving Screen |
