Military Gabion Barrier - China Factory Sales
The HESLY Military Defensive Barriers unit is a PATENT product, which is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
 | | |
| Military Defensive Barrier | Recoverable Bastion Barrier | Flood Barrier Wall |
About the newest Recoverable Defensive Barriers
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard defence barrier, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable defence are deployed in exactly the same way as the standard barrier products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
| | |
| Recoverable Bastion Barrier | HESLY Defensive Barrier | Military Gabion Barrier |
All
HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Applications include:
- Perimeter security
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
| - Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation
|
General Specifications
| HESLY Military Gabion Barriers |
| MODEL | CELLS No. | HEIGHT | WIDTH | LENGTH |
| MDB1R 5442 | 9 (5cells+4cells) | 54’’(1.37M) | 42’’(1.06M) | 32’9’’(10M) |
| MDB2R 2424 | 2 | 24’’ (0.61M) | 24’’(0.61M) | 4’(1.22M) |
| MDB3R 3939 | 10 (5cells X 2) | 39’’(1.00M) | 39’’(1.00M) | 32’.9’’(10M) |
| MDB4R 3960 | 20 (10cells X 2) | 39’’(1.00M) | 60’’(1.52M) | 32’.9’’(10M) |
| MDB5R 2424 | 5 | 24’’(0.61M) | 24’’(0.61M) | 10’(3.05M) |
| MDB6R 6624 | 5 | 66’’(1.68M) | 24’’(0.61M) | 10’(3.05M) |
| MDB7R 8784 | 13 (5cell+4cell+4cell) | 87’’(2.21M) | 84’’(2.13M) | 91’(27.74M) |
| MDB8R 5448 | 9 (5cells + 4cells) | 54’’(1.37M) | 48’’(1.22M) | 32’.9’’(10M) |
| MDB9R 3930 | 12 (6cell X 2) | 39’’(1.00M) | 30’’(0.76M) | 30’’(9.14M) |
| MDB10R 8760 | 20 (5cells X4) | 87’’(2.21M) | 60’’(1.52M) | 100’(32.50M) |
| MDB11R 4812 | 2 | 48’’(1.22M) | 12’’(0.30M) | 4’(1.22M) |
| MDB12R 8442 | 30 (5cells X 6) | 84’’(2.13M) | 42’’(1.06M) | 108’(33M) |
| NOTE: We accept OEM/ODM, and can design and make the barriers according to special requirements. |

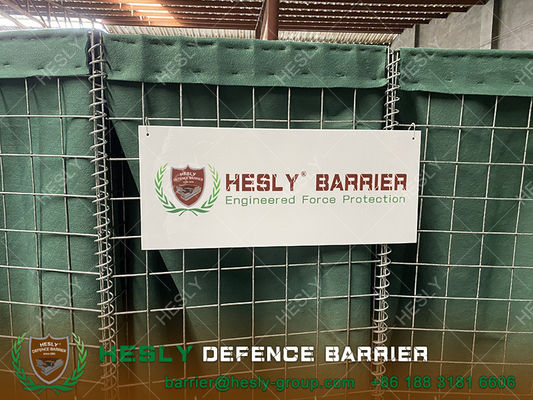

Reference Photos
