10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales

China 10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier
10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier 10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier 10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier 10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier 10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales supplier

Large Image :  10X10m MZP Putanka Wire, 0.5/0.5/0.8/0.8mm wire diameter, HeslyFence China Tangle Wire factory sales

Product Details:

Place of Origin: HeslyFence-China
Brand Name: HESLY
Certification: ISO9001
Model Number: HMZP1010

Payment & Shipping Terms:

Minimum Order Quantity: 200 sets
Price: USD60-USD90.00
Packaging Details: Plastic Film
Delivery Time: 20days/40'HQ
Payment Terms: T/T, L/C, D/P at sight, Western Union
Supply Ability: 200sets/day
Detailed Product Description
Material: High Carbon Steel Wire Wire Thickness: 0.5mm/0.8mm
Dimension: 10X10m

MZP Putanka Wire | МЗП Путанка​ | Inconspicuous Obstacle

MZP Putanka Wire | МЗП Путанка (inconspicuous obstacle, tanglefoot wire, confusion, Rabbit Wire) - a three-dimensional wire barrier made of carbon wire rings. The wire is very thin, so it is almost invisible.

The task of the MZP wire of the muddle is to prevent it from approaching the object. A person falls into a trap of rings and, in most cases, will not be able to get out of it on their own. It takes a lot of time to cut a passage in the barrier.

A Putanka inconspicuous obstacle is a serious obstacle for wheeled and tracked vehicles. Wire rings are wound around the wheels or tracks and stop the wheels from spinning.

Structure - MZP Putanka Wire

HESLY MZP - a four-tiered network of ring garlands. It is installed in the form of a parallelepipped.

Wire Rings are made from galvanized or non-galvanized carbon wire GOST 7372-79 with a diameter of 0.5; 0.6; 0.8 and 0.9 mm. Ring garlands are interconnected by wire twists of annealed wire with a diameter of 0.8 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire . An inconspicuous obstacle is completed with pegs, rings for mounting a wire fence. You can buy a "putanka" without a set of pegs.



Technical Data Sheet

TECHNICAL DATA SHEET - HESLY PUTANKA TANGLED WIRE NET
Unfolded Dimension 10×10×1.4m
Folded Dimension 1.2×0.6×0.8m
Wire Diameter / Garlands No.s φ0.9 / 0.8 / 0.6 / 0.5mm - 20 pcs; Twist-0.8mm
Package Weight 24kg (without rings and pegs)
Complete Set with 40 pcs
MEASUREMENT
LENGTH WIDTH HEIGHT VOLUME
0.98 m 0.68 m 0.75 m 0.4998 m3
0.20 m 0.40 m 0.40 m 0.032 m3



How Putanka Wire Tangled Net Work ?

The rings of tangled wire are wrapped around the wheels, preventing them from spinning. If someone jumps over the fence, the MSP gets confused on its feet, preventing it from passing further. There is no way to free yourself.

The main task of the wire tangle is to immobilize people and transport on the site, and not to protect the fence from climbing. For better protection of the fence itself, we recommend additionally installing Egoza barbed wire or Jowa barbed wire on the fence.

What happens when you hit an inconspicuous obstacle ?

If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot.

When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.

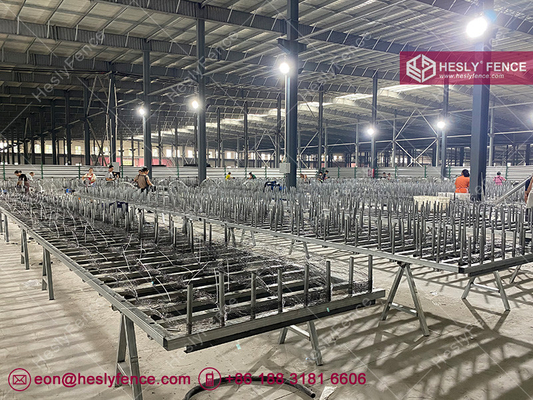

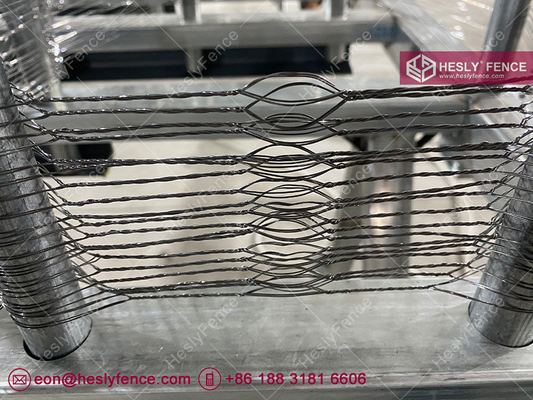

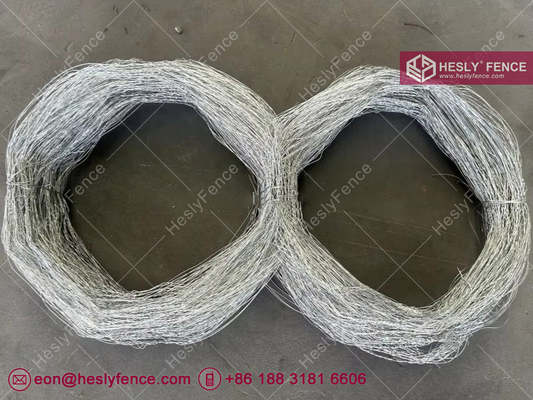

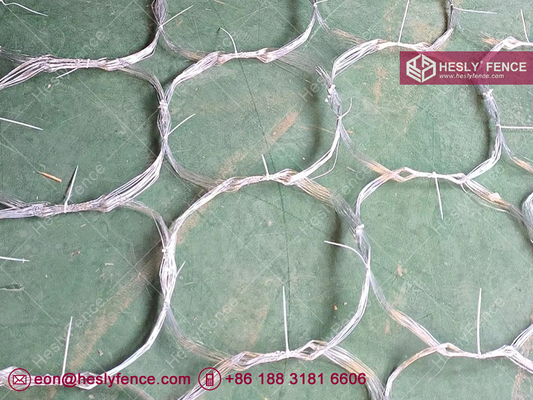

Reference Photos - MZP Putanka Tangled Wire

MZP Tangled Wire China Supplier MZP Putanka Wire HESLY China
MZP Tangle Wire Putanka Wire MZP
MZP Tangled Wire Barrier China factory МЗП Путанка HeslyFence
MZP Putanka Wire Mesh China Putanki Tangle Wire HeslyFence
Tanglefoot Wire MZP China supplier Putanka MZP Wire China Manufacturer
MZP Putanka Wire HeslyFence Putanka MZP China factory

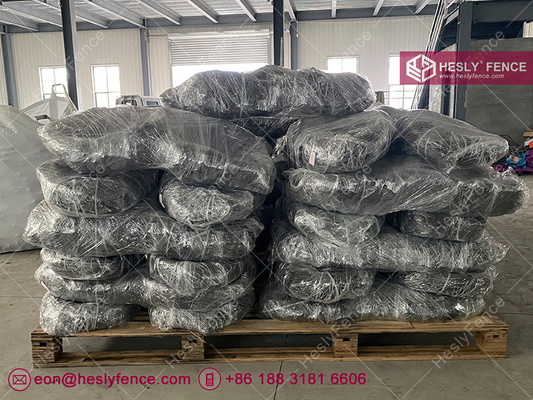

Package and Delivery - HESLY MZP Tangled Wire

MZP Putanka Wire China MZP Putanki Tangle Wire
MZP Tangled Wire Package China Putanki Tanglefoot Wire
