Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales

China Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier
Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales supplier

Large Image :  Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales

Product Details:

Place of Origin: HeslyFence, China
Brand Name: HESLY
Certification: ISO9001 | SGS
Model Number: HF358

Payment & Shipping Terms:

Minimum Order Quantity: 50 m
Price: US$ 15.00 to 35.00/L.M
Packaging Details: Pallets
Delivery Time: 15 working days/40' container
Payment Terms: T/T, L/C at sight, Western Union
Supply Ability: 300m/day
Detailed Product Description
Size: H2.5 X W3.0m Material: Hot-dipped Galvanised Wire / Galfan Wire
Surface Treatment: Powder Coated Color: RAL6005 As Standard
Optional Color: RAL 6005 OR Galvanised Steel Post: RHS 80X60X2.0mm

Green Powder Coated Clear VU Mesh Fence | 358 Anti-climb Mesh | Anti-cut | 8 Gauge | HeslyFence China factory sales

Clear VU Mesh Fencing also named 358 Anti-climb Fence, it is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mm × 12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10 years. The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing. This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.


HESLY High Security Fences are used to give enduring and secure protection for the public buildings, commercial properties etc. High security fence can also be worked with electric alarm, detection systems (no blind spots for CCTV) etc. It is also widely used in military, airports, prisons etc.

Common Specifications of 358 Clear VU Security Fence

Panels Posts
Fence Panel Size section O/A Length Total number of fixings
height Height/Width     Inters- 1 Clamp bar Corners- 2 Clamp bars
m mm
2.0 2007 x 2515 60x60x2.5mm 2700 7 14
2.4 2400 x 2515 60x60x2.5mm 3100 9 18
3.0 2997 x 2515 80x80x2.5mm 3800 11 22
3.3 3302 x 2515 80x80x2.5mm 4200 12 24
3.6 3607 x 2515 100x60x3mm 4500 13
3.6 3607 x 2515 100x100x3mm 4500   26

Benefits:
Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.
Vandal resistant
The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.
Efficient deterrence
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.
Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.
Durability
The high quality advanced coating technology guarantees an extended product life span and low maintenance.
Weld Strength
The superior welding technique and process control create a stronger fusion between the wires.
Complete system
Supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.

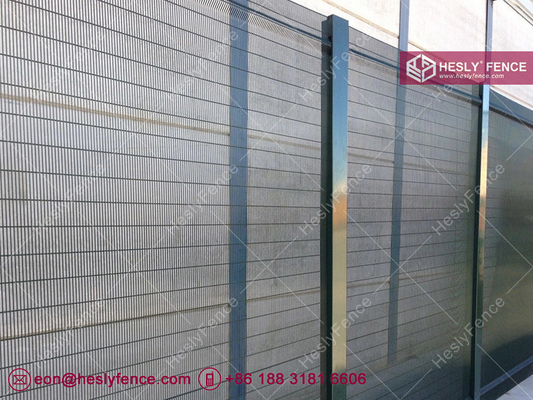

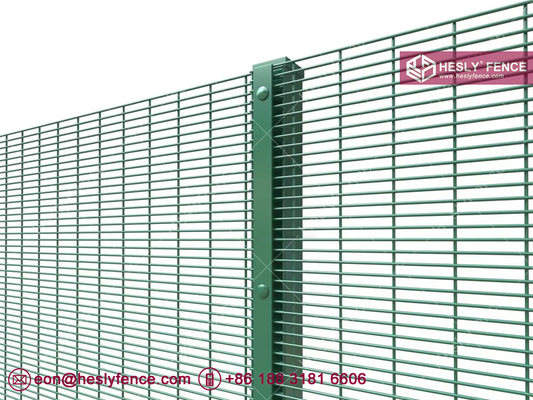

358 Anti-climb Security Mesh Fence - Photo Gallery

green clear view mesh fencing 358 Anti-climb Mesh Fencing
Clear VU Mesh Fence China Factory 358 Anti-climb Mesh Fencing - China Supplier
358 Anti-cut Wire Fencing Hesly Clear View Mesh Fencing
358 Anti-cut Mesh Fencing HESLY Clear View 358 Anti Climb Fence

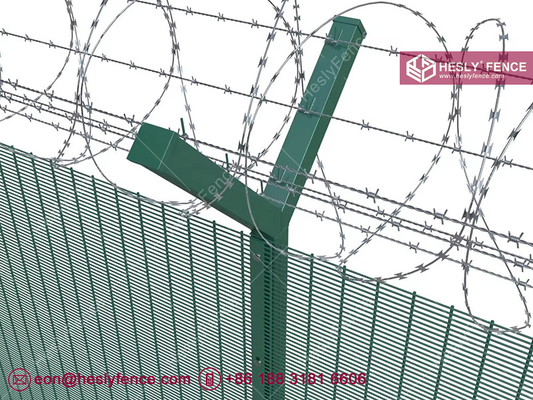

Optional Fence Topping Accessories

Fence Topping Spikes Fence Topping Concertina Razor Coil galvanized barbed wire
Top Razor Spike Concertina Razor Wire Galvanized Barbed Wire



Package and Delivery - Hesly 358 mesh Fence

358 HIGH SECURITY FENCE Chinese 358 Mesh Fence supplier
Clear View Mesh Panels Container Loading - 358 Mesh Fencing
