Home ProductsClear VU 358 Mesh Fence

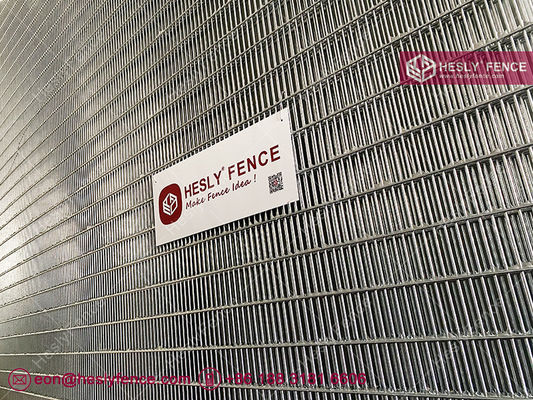

358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory

Good quality Military Defensive Barriers for sales
Good quality Military Defensive Barriers for sales
Through your words I see a man of wisdom and a man with a great soul. I am grateful for your trust. and I checked the mesh, which is very good !

—— Francis Courrier

We got all the HESCO Barriers. It is good ! The customer is very happy for them ! We had a good deal !

—— Kazuyuki

I'm Online Chat Now

358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory

China 358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier
358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier 358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier 358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier 358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier 358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory supplier

Large Image :  358 High Security Mesh Fencing, 12.7X76.2mm anti climb aperture, Yellow Color Powder Coated, China Factory

Product Details:

Place of Origin: HESLY Fencing Solutions, China
Brand Name: HESLY
Certification: ISO9001 | SGS
Model Number: HF358

Payment & Shipping Terms:

Minimum Order Quantity: 100 m
Price: depending on the market and ordered QTY.
Packaging Details: Pallets
Delivery Time: 15 working days/40' container
Payment Terms: T/T, L/C at sight, Western Union
Supply Ability: 300m/day
Detailed Product Description
Size: H2.0 X W2.5m Material: Hot-dipped Galvanised Wire / Galfan Wire
Surface Treatment: Powder Coated Color: RAL6005 As Standard
Optional Color: RAL 200 OR Galvanised Steel Post: RHS 80X60X2.0mm

358 High Security Mesh Fencing, 12.7X76.2mm Anti-climb aperture, Yellow Color Powder Coated, China Factory

HESLY Prison Security Fence, also called 358 mesh panel fence & anti climb mesh fencing, which is well-knowm as anti-climb & anti-cut through barrier with with excellent through visibility and resistance to vandalism.

As a security fence, 358 Wire mesh fence is a special structure designed for high security environments, using high quality carbon steel wire to weld a fence panel, and its measurements 3" × 0.5" × 8 gauge which equates to approx. 76.2mm × 12.7mm × 4mm in metric. That is why sometimes we call it "358" mesh fence. This special mesh panels combined with an steel framework and concertina razor wire, can create a complete high security fencing system.

 it can provide privacy in some extent. HESLY High Security Fences are used to give enduring and secure protection for the public buildings, commercial properties etc. High security fence can also be worked with electric alarm, detection systems (no blind spots for CCTV) etc. It is also widely used in military, airports, prisons etc.

General Specifications of 358 High Security Fence

PanelsPosts
FencePanel SizesectionO/A LengthTotal number of fixings
heightHeight/Width  Inters- 1 Clamp barCorners- 2 Clamp bars
mmm
2.02007 x 251560x60x2.5mm2700714
2.42400 x 251560x60x2.5mm3100918
3.02997 x 251580x80x2.5mm38001122
3.33302 x 251580x80x2.5mm42001224
3.63607 x 2515100x60x3mm450013
3.63607 x 2515100x100x3mm4500 26

Benefits:
Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.
Vandal resistant
The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.
Efficient deterrence
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.
Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.
Durability
The high quality advanced coating technology guarantees an extended product life span and low maintenance.
Weld Strength
The superior welding technique and process control create a stronger fusion between the wires.
Complete system
Supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.


358 Anti-climb Security Mesh Fence - Photo Gallery

hot dipped galvanised 358 mesh fencing panelHESLY Welded Wire Mesh Fencing
hot dipped galvanised 358 mesh fencing panelHESLY Welded Wire Mesh Fencing
yellow clear view mesh fence panelgreen 358 security mesh fence
yellow clear view mesh fence panelgreen 358 security mesh fence
high security prison perimeter fenceHigh Security Mesh Fence with Top Razor Coil
high security prison perimeter fenceHigh Security Mesh Fence with Top Razor Coil



Package and Delivery - Hesly 358 mesh Fence

hesly 358 high security fence China Factory supplierWelded Wire Mesh Exporter China
358 Mesh Fence in PalletContainer Loading - 358 Mesh Fencing
