Product Details:
Payment & Shipping Terms:
|
| Material: | Hot-Dip Gal. Wire Or Galfan Wire & Geotextile | Welded Mesh Panel: | 5.0 X (3"X3") |
|---|---|---|---|
| Geotextile Color: | Beige, Green, Grey, White Etc | Cell Unit: | 2.13X1.06X1.06m |
| Application: | Military Defence, Flood Barrier Etc |
Brief Introduction

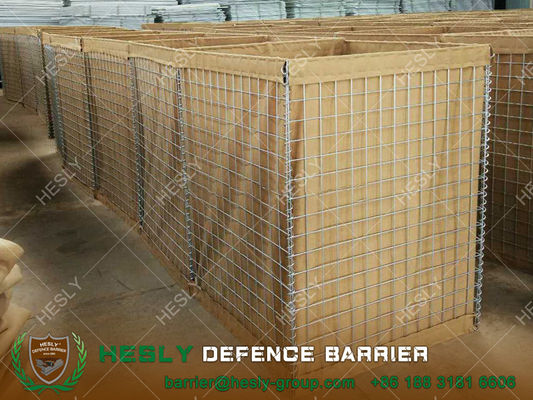

The HESLY Military Defensive Barriers unit is a PATENT product, which is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
 |
|
|
| Military Defensive Barrier | Recoverable Bastion Barrier | Flood Barrier Wall |
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard defensive barrier units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable defence barrier are deployed in exactly the same way as the standard gabion barrier products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
|
|
|
| Recoverable Bastion Barrier | HESLY Defensive Barrier | Military Gabion Barrier |
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
|
|
| General Specification Sheet - HESLY Defensive Barriers | ||||
| Model | Height | Width | Length | Structure |
| MDB-1 5442 | 1.37m(54") | 1.06m(42") | 10m(32'9") | 5cells+4cells |
| MDB-2 2424 | 0.61m(24") | 0.61m(24") | 1.22m(4') | 2cells |
| MDB-3 3939 | 1.00m(39") | 1.00m(39") | 10m(32'9") | 5cells+5cells |
| MDB-4 3960 | 1.00m(39") | 1.52m(60") | 10m(32'9") | 10cells+10cells |
| MDB-5 2424 | 0.61m(24") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-6 6624 | 1.68m(66") | 0.61m(24") | 3.05m(10') | 5cells |
| HMIL-7 8784 | 2.21m(87") | 2.13m(84") | 27.74m(91') | 4cellsX2+5cells |
| MDB-8 5448 | 1.37m(54") | 1.22m(4') | 10m(32'9") | 5cells+4cells |
| MDB-9 3930 | 1.00m(39") | 0.76m(30") | 9.14m(30') | 6cells+6cells |
| MDB-10 8760 | 2.21m(87") | 1.52m(60") | 32.5m(100') | 5cellsX6 |
| MDB-11 4812 | 1.22m(4') | 0.30m(12") | 1.22m(4') | 2cells |
| MDB-12 8442 | 2.13m(84") | 1.06m(42") | 33m(108') | 5cellsX6 |
| NOTE: OEM/ODM is available. Barrier dimensions can be custom-made. | ||||
|
|
| Military Defensive Barrier Factory | Gabion Barrier China Exporter |
|
|
| Africa Defence Barrier | UN Peace keeping Gabion Barrier |
|
|
| Military Defence Barrier Camp | Defensive Barrier Bunker |
