HESLY Airport Security Fencing

HESLY Airport Security Fencing System is also known as “Y-Shape security fence”. It is strengthened by the v-shaped support arm and welded mesh, security fittings and hot-dip galvanized concertina razor wire to form a high level of strength and security. Airport Fence is widely used in airports, military bases and other high security sites.

On top of the airport fence is concertina razor wire which acts as a good enhanced safety barrier. By galvanization, polyester powder coating, airport fence has very good resistance to aging. It has sun-resistant, corrosion-resistant characteristics. Airport Fence is good looking in appearance. It can have various colors and it’s not only a fencing application but a perimeter decoration. Due to its high safety, good anti-climbing ability, mesh connections using special SBS tight fastener, it effectively prevent cases of human destructive disassembly. The four horizontal bend makes the mesh strength increased significantly.
Airport Fence has a wide range of application scenarios like airports, roads, railways and bridges on either side of the isolation area, ports, docks, parks, lawns, municipal construction, zoo, hotels, supermarkets, entertainment, etc.

Airport fence at the airport plays an important role in the airport construction. Airport fence is mainly used for the security and performance of the airport.

Genearal Instroduction of HESLY Airport Fence

1. Height: the height of the airport fence, measure from ground to the top point of razor wire.
2. Width: the horizontal distance of airport fence, measure from center to center of the square post.
3. Wire Thickness: diameter of the low carbon steel wire of airport fence panel.
4. Mesh Size: the horizontal and vertical length of airport fence panel mesh.
5. Y Shape Post: a V shape post welded on the main post, for setting up the V panel and razor wire on top.
6. Clamp: special anti-UV plastic clamp for setting up the airport fence panel and post.
7. Hot Dipped Galvanized: dip the airport fence fence in to a container which is full of liquid zinc, to prevent the airport fence panels from getting rusty.
8. Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the airport fence panels from getting rusty.

Specifications of HESLY Airport Fencing

Panel	Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds NOS.	Panel Height	Fence Height
Big Panel	50x100mm 55x100mm	4.00mm 4.50mm 5.00mm	Galvanized and Electrostatic polyester coated or PVC coated	2.50m 3.00m	4	2000mm	2700mm
					5	2300mm	3200mm
					6	2600mm	3700mm
					2	530mm	2700mm
V panel						630mm	3200mm
						730mm	3700mm



Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x60mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	2700mm I +550mm V	Available on request	Plastic or Metal
			3100mm I +650mm V
			3600mm I +750mm V



Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x60mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	1900mm / +400mm I	Available on request	Plastic or Metal
			2200mm / +500mm I
			2500mm / +500mm I



Type	Core wire /Blade thickness	Surface Treatment	Length	Out side diameter	Clips
BTO-22	2.5/0.5mm	Hot dipped galvanized	8-10m/roll	500mm	3 lines
				600mm
				700mm



Reference Photos of HESLY Airport Fence

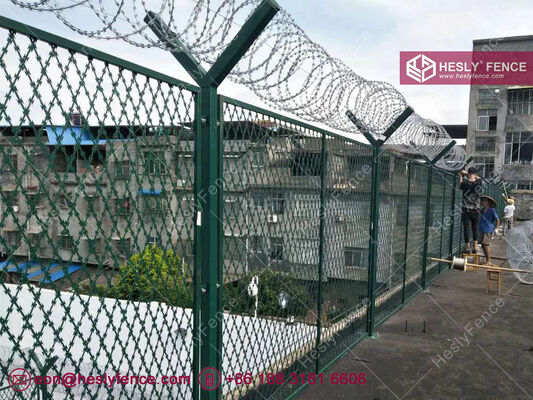

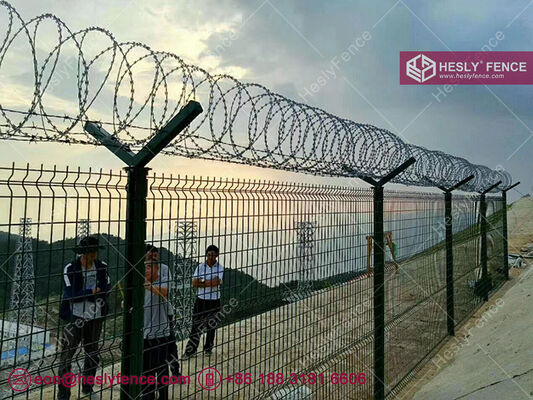

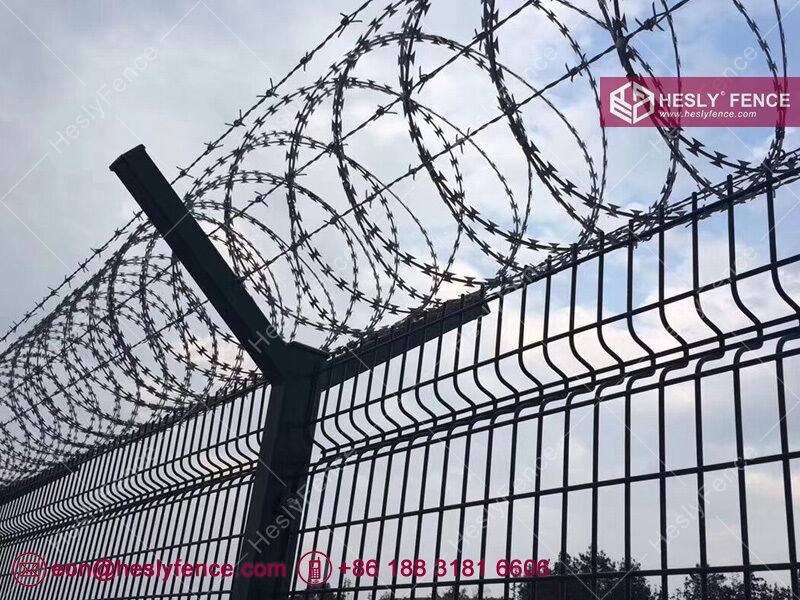

Physical Photo 01	Physical Photo 02

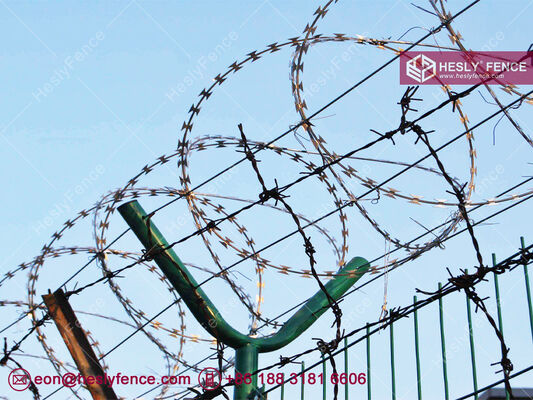

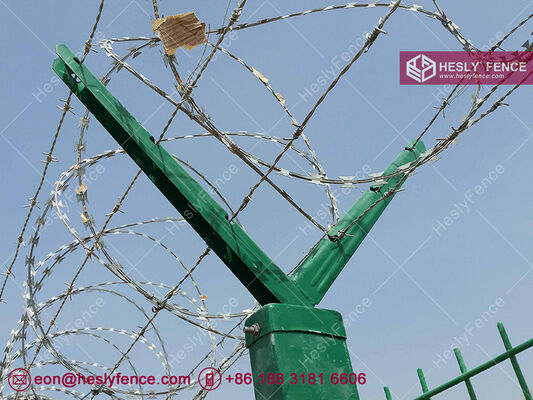

"V" bracket 01	"V" bracket 02
Package of Mesh Panels	Package of Mesh Panels
Loading Container	Loading Container
