316L Stainless Steel Zoo Mesh

China 316L Stainless Steel Zoo Mesh supplier
316L Stainless Steel Zoo Mesh supplier 316L Stainless Steel Zoo Mesh supplier 316L Stainless Steel Zoo Mesh supplier 316L Stainless Steel Zoo Mesh supplier 316L Stainless Steel Zoo Mesh supplier

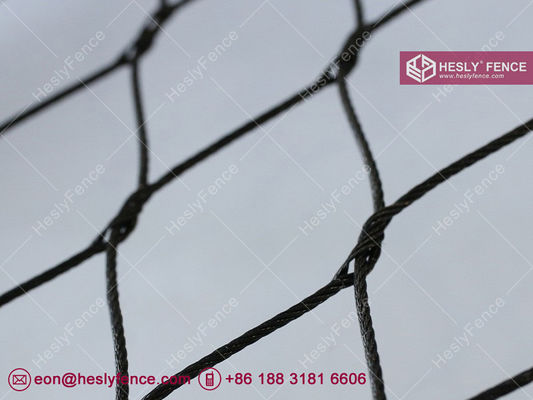

Large Image :  316L Stainless Steel Zoo Mesh

Product Details:

Place of Origin: HESLY Group, CHINA
Brand Name: HESLY
Certification: ISO9001
Model Number: H-CM-1025

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Price: US$40.00 to 55.00/square meter
Packaging Details: Plywood Box
Delivery Time: 7 working days/1000 square meters
Payment Terms: T/T, L/C, D/P at sight, Western Union
Supply Ability: 200 square meters/day
Contact Now
Detailed Product Description
Material: AISI316 Stainless Steel Wire Cable Structure: 7X19, 7X7
Style: Ferrule/Sleeve Type Cable Dia.: 1.0mm To 4.0mm
Aperture: 20mm X 35mm - 200mm X 346mm Application: Facade/Safety Protection

316L Stainless Steel Wire Rope Zoo Mesh | Animal Enclosure Mesh

About Hesly ZooMesh

[Stainless Steel Wire Rope Mesh] A material such as Wire Rope Mesh is the ideal creative and functional alternative to fencing and bars. All over the world, increasing numbers of zoological gardens are using it as the resource of choice for new animal enclosures. Word of the positive experience gained with this material is gradually spreading among the experts. Wire Rope Mesh is safety-certified, weather-resistant and highly durable and requires little or no maintenance. Even the initial investment can be considered comparatively cost-effective.



The main benefit Hesly Wire Cable Net provides for zoo enclosures, however, is the filigreed structure that minimizes the viewing obstruction caused by the unavoidable safety barrier. This effect is particularly impressive at Temaiken Zoo in Buenos Aires, where wire cable net has been used to build huge, walk through aviaries. Strung between steel arches that are up to 12 meters high, the mesh is barely visible when looking up to the sky. The benefits of transparency, however, are not limited to visitors to the zoo, now able to enjoy even better views of their darlings.

Stainless Steel Wire Rope Zoological Mesh Animal Enclosure Mesh China Supplier bird net China Zoo Mesh Factory Monkey Cage Supplier China

Whether you need to protect caged animals or birds from predators or secure these animals to protect others, the Hesly Rope Mesh is the answer in strength and durability. Our material are available Sleeve Type an dWoven Type which made from super 304,316 grade stainless steel cable or Hot Dipped Galvanized Wire Cable, PVC coated Rope, Nylon Coated Wire Rope and Silicone Coated Wire Cable .

Stainless Steel Wire Cable Mesh with ferrule/sleeves Stainless steel Wire Rope Mesh
SS Cable Mesh (Ferrule/Sleeve Type) SS Cable Mesh (Woven Type)

Advantages

  • > 316 "marine grade" stainless steel
  • > Innovative, highly durable product
  • > Black anodised or galvanised finish options
  • > Great prices
  • > Professional, friendly service
  • > Pliable, high strength mesh system
  • Wide range of sizes available
  • UV and weather resistant
  • Fast turnaround
  • Ideal for many applications

The Hesly Wire Rope Mesh is ideal for many different applications, including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

316L Wire Rope Mesh China ISO certificated supplier Ferruled 316L wire rope mesh
 Ferruled Stainless Steel Wire Rope Mesh Ferruled SS Wire Rope Mesh

Technical Info

HeslyRope stainless steel wire rope mesh net is assembed by seamless ferrules and stainless steel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle ).

Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

Stainless Steel Wire Ropes Candurs Stainless Steel Wire Rope Mesh Net
Structure 1.0 mm 1.5 mm 2.0 mm 3.0mm 4.0 mm
Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19

Single Wire TS

(N/mm2)

1770 1770 1770 1570 1570
Mesh Structure
Opening Size Rope Diameter
OW X OH 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 CD1020
25 x 43 CD1025 CD1525
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080 HeslyRope
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100 OW : Opening Width
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120 OH : Opening Height
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160 OG : Opening Guage
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180 α : 60° standard (Angle: 30° - 90°)
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200





Stretched

The HeslyRope rope mesh net can be stretched at 20°-90°,standard 60° angle.

Candurs Stainless Steel Wire Rope Mesh NetOpening Orientation

Customized wire rope mesh net's height and length.

HESLY Wire Rope MESH

General Specifications of TwistMesh (woven) type:



Flexible Stainless Steel Cable Mesh (Inter-woven Type): Zoo Mesh / Animal Enclosure
Animal Specs Item No.s Wire Rope
Construction
Cable Diameter Mesh Opening Size (W*H) Normal Break
inch mm inch mm Ibs.

316L Stainless Steel Zoo Mesh

Tiger Enclosure Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2410W 7 x 7 3/32 2.4 4" x 4" 102 x 102 920
EH-3251W 7 x 19 1/8 3.2 2" x 2" 51 x 51 1600
EH-3276W 7 x 19 1/8 3.2 3" x 3" 76 x 76 1600
EH-3210W 7 x 19 1/8 3.2 4" x 4" 102 x 102 1600

316L Stainless Steel Zoo Mesh

Lion Enclosure Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2410W 7 x 7 3/32 2.4 4" x 4" 102 x 102 920
EH-3210W 7 x 19 1/8 3.2 2" x 2" 51 x 51 1600
EH-3276W 7 x 19 1/8 3.2 3" x 3" 76 x 76 1600
EH-3210W 7 x 19 1/8 3.2 4" x 4" 102 x 102 1600

316L Stainless Steel Zoo Mesh

Leopard Cage Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2410W 7 x 7 3/32 2.4 4" x 4" 102 x 102 920
EH-3251W 7 x 19 1/8 3.2 2" x 2" 51 x 51 1600
EH-3276W 7 x 19 1/8 3.2 3" x 3" 76 x 76 1600
EH-3210W 7 x 19 1/8 3.2 4" x 4" 102 x 102 1600

316L Stainless Steel Zoo Mesh

Wolf Cage Mesh

EH-3251W 7 x 7 1/8 3.2 2" x 2" 51 x 51 1600
EH-2451W 7 x 7 3/32 2.4 2" x 2" 51 x 51 920

316L Stainless Steel Zoo Mesh

Small Cat Cage Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2451W 7 x 7 3/32 2.4 2" x 2" 51 x 51 920
EH-2076W 7 x 7 5/64 2.0 3" x 3" 76 x 76 676
EH-2051W 7 x 7 5/64 2.0 2" x 2" 51 x 51 676

316L Stainless Steel Zoo Mesh

Monkey Cage Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2410W 7 x 7 3/32 2.4 2" x 2" 102 x 102 920
EH-2038W 7 x 7 5/64 2.0 1.5" x1.5" 38 x 38 676

316L Stainless Steel Zoo Mesh

Gorilla Cage Mesh

EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2410W 7 x 7 3/32 2.4 4" x 4" 102 x 102 920
EH-3251W 7 x 19 1/8 3.2 2" x 2" 51 x 51 1600
EH-3276W 7 x 19 1/8 3.2 3" x 3" 76 x 76 1600
EH-3210W 7 x 19 1/8 3.2 4" x 4" 102 x 102 1600

316L Stainless Steel Zoo Mesh

Deer Cage Mesh

EH-3276W 7 x 19 1/8 3.2 3" x 3" 76 x 76 1600
EH-2476W 7 x 7 3/32 2.4 3" x 3" 76 x 76 920
EH-2076W 7 x 7 5/64 2.0 3" x 3" 76 x 76 676



316L Stainless Steel Zoo Mesh

Giraffe Cage Mesh

EH-3210W 7 x 19 1/8 3.2 4" x 4" 102 x 102 1600
EH-2410W 7 x 7 3/32 2.4 4" x 4" 102 x 102 920



Reference Photos

Stainless Steel Wire Cable Mesh China Supplier  woven stainess steel wire rope mesh
Ferrule Stainless Steel Wire Cable Mesh Woven Stainless Steel Wire Rope Mesh
Stainless Steel Wire Mesh for Animal Enclosure Stainless Steel Wire Cable Animal Cage
Stainless Steel Wire Rope Mesh Stainless Steel Wire Rope Mesh
China Stainless Steel Wire Mesh for bridge protection China Stainless Steel Wire Mesh
End Clips Clips
Hand-made stainless steel wire cable mesh Webnet
Pure Hand-Made Pure Hand-Made
Woven Stainless Steel Wire Rope Mesh Stainless Steel Wire Cable Mesh
Hand Woven Hand Woven
316L stainless steel wire rope mesh China ISO certificated supplier China Stainless Steel Wire Cable Netting
China X-tend Wire Mesh Supplier China Flexible Wire Mesh Manufacturer
Package with carton Package with plywood box

How to order ?

  • Rope diameter + Opening : such as CD1560,CD3060 etc
  • Opening orientation : H or V
  • Edge : such as L10,L18,L24 etc
  • Piece height and length
  • Drawing is necessary if available
  • Order e.g. :CD1560 - 60° - H - L10 - Height x Length
  • Contact Us info@heslymetalmesh.com  +86 180 3181 5787
