Military Defensive Gabion Barriers

China Military Defensive Gabion Barriers supplier
Military Defensive Gabion Barriers supplier Military Defensive Gabion Barriers supplier Military Defensive Gabion Barriers supplier Military Defensive Gabion Barriers supplier

Large Image :  Military Defensive Gabion Barriers

Product Details:

Place of Origin: HeslyBarrier, CHINA
Brand Name: HESLY
Certification: ISO9001
Model Number: HMil-1-12S

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: US$ 30.00 to US$50.00/unit
Packaging Details: Pallet and plastic film
Delivery Time: 12 working days/40' container
Payment Terms: T/T, L/C at sight, D/P, Western Union
Supply Ability: 30units to 600units /day
Contact Now
Detailed Product Description
Material: Hot-Dip Gal. Wire Or Galfan Wire & Geotextiel Welded Mesh Panel: 4.0/5.0 X (3"X3")
Geotextile Color: Beige, Green, Grey, White Etc Cell Unit: 61X61X61cm To 221X213X213cm
Application: Military Defence, Flood Barrier Etc

HESCO MILITARY DEFENSIVE BARRIERS | Standard Gabion Units

Brief Introduction

The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

Recoverable Bastion Barrier Military Bastion Barrier CHINA Factory HESCO Concertina Units
Recoverable Defensive Barrier Military Security Bastion Defensive Barrier Wall

About the newest Recoverable Defensive Barriers

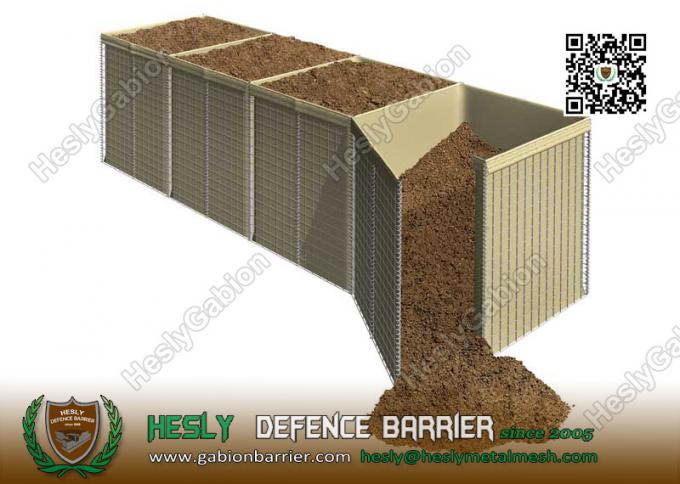

The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard HMIL units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.

Recoverable HMIL units are deployed in exactly the same way as the standard HMIL products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.

recoverable hesco barriers China Exporter China Recoverable Gabion Barriers CHINA Military Gabion Barrier Factory
Recoverable Bastion Barrier HESLY Defensive Barrier Military Gabion Barrier
All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.

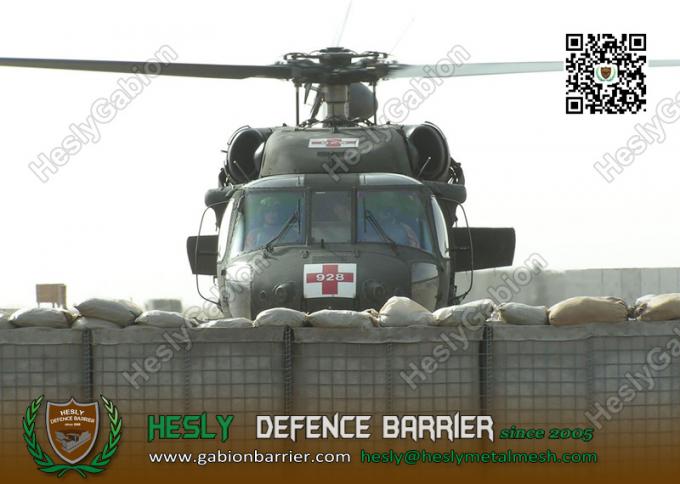

Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Applications include:

  • Perimeter security
  • Defensive barriers
  • Equipment revetments
  • Ammunition compounds

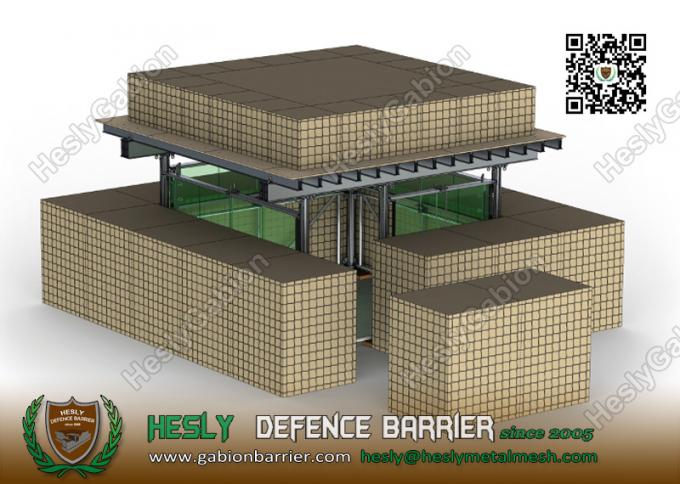

  • Personnel bunkers
  • Observation points
  • Guard posts
  • Ammunition and explosives stores
  • Contraband search areas
  • Highway checkpoints
  • Border crossing checkpoints
  • Protecting existing structures
  • Traffic management
  • Hostile vehicle mitigation



General Specifications
HESLY Defensive Barriers Units
HESLY Military Gabion Barriers
MODEL CELLS No. HEIGHT WIDTH LENGTH
HMIL1R 5442 9 (5cells+4cells) 54’’(1.37M) 42’’(1.06M) 329’’(10M)
HMIL2R 2424 2 24’’ (0.61M) 24’’(0.61M) 4(1.22M)
HMIL3R 3939 10 (5cells X 2) 39’’(1.00M) 39’’(1.00M) 32.9’’(10M)
HMIL4R 3960 20 (10cells X 2) 39’’(1.00M) 60’’(1.52M) 32.9’’(10M)
HMIL5R 2424 5 24’’(0.61M) 24’’(0.61M) 10(3.05M)
HMIL6R 6624 5 66’’(1.68M) 24’’(0.61M) 10(3.05M)
HMIL7R 8784 13 (5cell+4cell+4cell) 87’’(2.21M) 84’’(2.13M) 91(27.74M)
HMIL8R 5448 9 (5cells + 4cells) 54’’(1.37M) 48’’(1.22M) 32.9’’(10M)
HMIL9R 3930 12 (6cell X 2) 39’’(1.00M) 30’’(0.76M) 30’’(9.14M)
HMIL10R 8760 20 (5cells X4) 87’’(2.21M) 60’’(1.52M) 100(32.50M)
HMIL11R 4812 2 48’’(1.22M) 12’’(0.30M) 4(1.22M)
HMIL12R 8442 30 (5cells X 6) 84’’(2.13M) 42’’(1.06M) 108(33M)
NOTE: We accept OEM/ODM, and can design and make the barriers according to special requirements.

Reference Photos

China Military Defensive Barrier HESCO Bastion Barrier China Exporter
Illustration of HMil-3 Defensive Barrier HMIL-5 Military Gabion Barrier
Mil7 HESCO Barrier China Factory Military Defensive Gabion Barrier China Manufacturer
HESLY Defensive Barrier (Factory) Military Defensive Barriers China Exporter
China HESCO Barrier Factory HESCO Bastion Barrier China Factory/exporter
HESLY Defensive Barrier Factory HESLY Defensive Barrier Factory
HESLY Defensive Barrier China Factory Military Gabion Barrier China Exporter
HESLY Defensive Barrier Factory HESLY Defensive Barrier
HESLY Defensive Barrier China Factory Military Gabion Barrier China Exporter
HESCO Defensive Barrier HESCO Bastion Barrier
