Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh

China Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier
Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh supplier

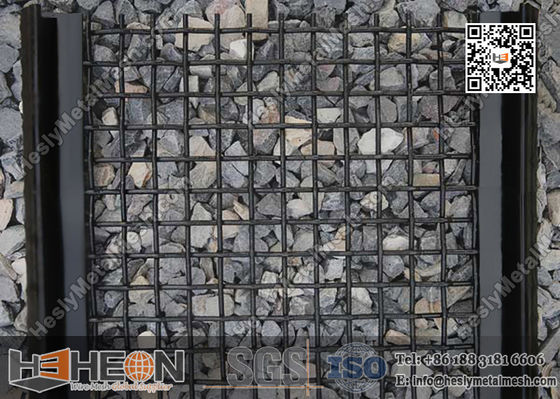

Large Image :  Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh

Product Details:

Place of Origin: EON Wire Mesh Factory, China
Brand Name: HESLY
Certification: ISO9001 | SGS
Model Number: HYKS-20

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Price: US$0.85 to 25.50/square meters
Packaging Details: Steel Pallet / Plywood Carton
Delivery Time: 7 working days/20' container
Payment Terms: T/T, L/C, D/P at sight, Western Union
Supply Ability: 1000 square meters/day
Contact Now
Detailed Product Description
Technical: Crimp & Woven Wire Dia.: 0.71mm To 12.5mm
Aperture: 1mm To 100mm Coating: Galvanised Or Painted

Lock Crimp Woven Screen | Mining Sieving Screen Mesh | Crusher Sieving Screen Mesh

Mining Sieving Screen Description

The Lock Crimp Mesh is produced via the pre-crimp technique. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement in the mesh. This makes the lock crimp wire cloth a very hearty stainless steel screen mesh.

Lock Crimped Mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

Weave Type:
Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.

Hook type:
Bending.
Welding.
Metal sheet hook. (C type or U type).


Material:
highly abrasion-resistant spring steel or stainless spring steel.
>> High Tensile Steel---Abrasion resistance
>> Stainless Steel---Corrosion resistance
>> Monel,Brass,etc---General applications

Chemical Composition

Application:
Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory.

Genearal Specification

HESLY Woven Crimped Wire Mesh Screen

Edge Styles as optional

Mining Sieving Screen Mesh

Reference Photos

Lock Crimped Wire Mesh Vibrating Screen Mesh
Vibrating Screen Mesh Lock Crimped Wire Screen
Lock Crimped Wire Screen Mesh Hook Woven Mesh Screen
Lock Crimped Wire Screen Mesh Double Crimp Wire Screen
Bending Woven Mesh Screen Crusher Sieving Screen Mesh
Mining Sreen Mesh Crusher Screen Mesh
