|Material:||Hot-dipped Galvanised Wire / PVC/PE Coated Wire||Technical:||Woven|
|Mesh Aperture:||Hexagonal 80X10mm||Box Size:||1X1X1m; 2X1X1m, 4X2X0.17m Etc.|
GABIONS are double-twisted wire mesh baskets of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units. They are filled with stone at the project site to form flexible, permeable, monolithic structures, such as retaining walls, sea walls, channel linings, revetments and weirs for erosion control projects.
Gabion structures are able to develop and integrate with the surrounding environment, permitting the preservation or restorations of the natural environment. They are often used by architects as decorative elements of the landscape.

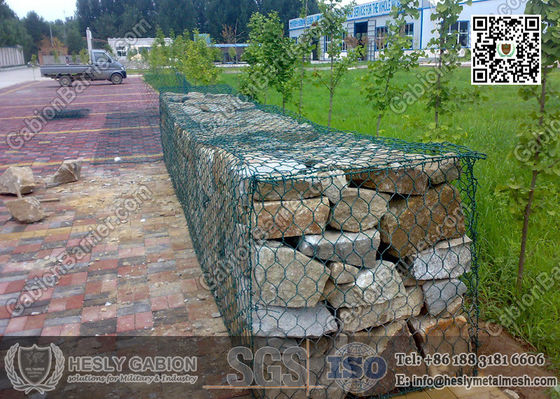

PVC coated Gabion
PVC Coated Gabion Mesh is a kind of hexagonal wire mesh container, which is woven by PVC coated steel wire. The core wire is galvanised or galfan alloy wire. The PVC coating is the a second protective layer. It offers all the benefits of galvanized wire including its galvanic properties including the corrosion resistance properties. Any RAL200 color is available for the PVC coated. But the color of Green and Grey are most popular.
> Wire tension resistance: 450/650 N/mm2.
> Zinc plated surface thickness = 260 g/mm2, according to the British Standard (BS 443-1052).
> Body wire diameter: 2.0 to 4.0 mm without PVC coating.
Wire THK of Hot-dip Galvanised Gabion:
Wire THK of PVC/PE Coated Gabion:
|Mesh||PVC Wire: Inside/Outside|
Gabion baskets sizes: 2.00 m × 1.00 m × 0.30 m; 2.0 m × 1.00 m × 0.50 m; 2.00 m × 1.00 m × 1.00 m; 3.00 m × 1.00 m × 0.30 m; 3.00 m × 1.00 m × 1.00 m; 4.00 m × 1.00 m × 0.30 m; 4.00 m × 1.00 m × 0.50 m; 4.00 m × 1.00 m × 1.00 m.
|Length (m)||Width (m)||Height (m)||Diaphragm quantity|
|Mesh aperture||60x80mm, 80x100mm, 100x120mm, 120x150mm, etc|
|Selvedge wire||0.5mm-1.0mm thicker than mesh wire|
|Surface||Hot dipped galvanized; Galfan or PVC coated|
|PVC coated Hexagonal Wire Mesh||Dark Green Color Hexagonal Wire Net|
|PVC coated Gabion Box||PVC coated Gabion Basket|
|China PVC coated Gabion Box Factory||China PVC coated Gabion Mat Exporter|
One of the most important advantages of double twisted mesh gabions & reno mattresses is their flexibility both for the individual unit and the overall gabion or reno mattress structure. The Double Twisted Hexagonal Mesh construction of the units permits it to tolerate differential settlement without failure. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Gabions & Reno Mattresses built from high strength double twisted hexagonal mesh filled with natural hard durable stone and connected together to create a monolithic mass structure capable of undergoing structural movement without any loss of structural integrity creating a highly durable structure.
Double Twisted Hexagonal Mesh Gabions & Reno Mattresses possess the strength and flexibility to withstand forces generated by water and earth masses. The most important and relevant strength characteristics pertaining to gabion and reno mattress design standards are the mesh punch strength, the mesh tensile strength, the pull apart resistance strength of the mesh, and the corrosion resistance of the mesh. The strength values of the double twisted mesh are located within the individual product specifications for each product and are represented in ASTM A975-97.
Gabions & Reno Mattresses create structures that are naturally free draining. Hydrostatic heads do not develop behind gabion and reno mattress structures. Drainage is accomplished by gravity and by evaporation as the porous structure permits an active air circulation through it. Moreover, as soil is deposited and plant growth invades the structure, transpiration further assist in removing moisture from the soil being protected.
Gabions & Reno Mattresses offer an environmentally sensitive solution to soil retention slope stabilization. Gabion and reno mattress structures utilize natural stone for their stability and strength. Constructed of natural stone fill the gabions are naturally porous allowing interaction between the land and the water table. Soil will generally be deposited in the small voids of the stone fill material during drainage and draw down and will promote vegetated growth inundating the structure. Over time in some applications the structure can become so inundated with vegetation as to no longer be visible. Vegetation, plant and tree growth can be implemented at the time of construction utilizing several methods to ensure vegetation occurs immediately.
The overall strength characteristics offered by the double twisted hexagonal mesh gabion and reno mattress listed above and the long successful history of the material usage world wide ensures that the double twisted mesh gabions and reno mattresses will perform as designed.
Low Construction Cost
Gabions & Reno Mattress installations are very cost effective. Gabions & Reno Mattresses are easy to construct requiring limited equipment, unskilled labor, minimal foundation preparation, no drainage provisions, and low cost stone fill generally provided by a local stone or rock supplier. Gabion & Reno Mattress structures require very little if any maintenance and if designed and built properly can be a permanent structure.
Gabions & Reno Mattresses constructed with care can create visually pleasing structures. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage. In fact the longer a gabion or reno mattress structure is in place and becomes inundated with vegetation the more aesthetic it becomes.
