Stainless Steel Wire Rope Mesh

China Stainless Steel Wire Rope Mesh supplier
Stainless Steel Wire Rope Mesh supplier Stainless Steel Wire Rope Mesh supplier Stainless Steel Wire Rope Mesh supplier Stainless Steel Wire Rope Mesh supplier Stainless Steel Wire Rope Mesh supplier

Large Image :  Stainless Steel Wire Rope Mesh

Product Details:

Place of Origin: HESLY Group, CHINA
Brand Name: HESLY
Certification: ISO9001
Model Number: H-WCM2080

Payment & Shipping Terms:

Minimum Order Quantity: 5 square meters
Price: US$40.00 to 55.00/square meter
Packaging Details: Plywood Box
Delivery Time: 7 working days/1000 square meters
Payment Terms: T/T, L/C, D/P at sight, Western Union
Supply Ability: 200 square meters/day
Contact Now
Detailed Product Description
Material: AISI316 Stainless Steel Wire Cable Structure: 7X7, 7X19
Style: Ferrule/Sleeve Type Cable Dia.: 1.5mm To 3.0mm
Aperture: 20X20mm To 300X300mm Application: Facade/Safety Protection/Zoo Mesh

SS316 / SS304 Stainless Steel Wire Rope Mesh | China SS Wire Rope Mesh Factory

Stainless Steel Wire Rope/Cable Mesh is very popular in the field of modern architectural decoraturation and animal protection.

A special fabric strength and flexibility, a “network” whose strands are knotted or crossed or Ferruled cable net is a construction based on stainless steel cables which are parallel in pairs and mutually connected by offset curved sleeves. The net construction can be separated as an accordion, producing a spring force which varies by opening thickness and wire mesh rope. The Hesly® RopeMesh is a vibrant and top-quality products: the mesh size (varying from too tight or too wide) and the wire rope diameter (1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm) to determine its functionality and aesthetics.

Both the cable and components are made from AISI 316 material group. And also you can choose AISI304 or hot dipped galvanised wire cable.

Stainless Steel Wire Cable Mesh with ferrule/sleeves Stainless steel Wire Rope Mesh
SS Cable Mesh (Ferrule/Sleeve Type) SS Cable Mesh (Woven Type)

Advantages

  • > 316 "marine grade" stainless steel
  • > Innovative, highly durable product
  • > Black anodised or galvanised finish options
  • > Great prices
  • > Professional, friendly service
  • > Pliable, high strength mesh system
  • Wide range of sizes available
  • UV and weather resistant
  • Fast turnaround
  • Ideal for many applications

Features and Applications

Structures flexible, transparent mesh made of stainless steel rope Hesly ArchMesh series are multifunctional and durable: mounted on rails or stairs, provide support and guidance; facades, can be used as training systems for plants; in large rooms, they create subtle accents like filigree partitions. As a safety net and permanent security for bridges or observation platforms, it is absolutely UV and weather resistant, unlike networks Conventional plastic fiber knotted.
The Hesly RopeMesh has the features of the skin like a diaphragm. It can form a flat surface, but can also be stretched in three-dimensional forms that provide funnel-shaped, cylindrical or spherical shapes.

The Hesly Wire Rope Mesh is ideal for many different applications, including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

Technical Info

Hesly stainless steel wire rope mesh is assembed by "C"  or Seamless ferrules and stainless steel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle ).

Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

Stainless Steel Wire Ropes Candurs Stainless Steel Wire Rope Mesh Net
Structure 1.0 mm 1.5 mm 2.0 mm 3.0mm 4.0 mm
Structure 7 x 7 7 x 7 7 x 7 7 x 19 7 x 19

Single Wire TS

(N/mm2)

1770 1770 1770 1570 1570
Mesh Structure
Opening Size Rope Diameter
OW X OH 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm
20 x 35 CD1020
25 x 43 CD1025 CD1525
35 x 61 CD1035 CD1535
40 x 69 CD1040 CD1540 CD2040
50 x 87 CD1050 CD1550 CD2050 CD3050
60 x 104 CD1060 CD1560 CD2060 CD3060 CD4060
70 x 121 CD1070 CD1570 CD2070 CD3070 CD4070
80 x 139 CD1080 CD1580 CD2080 CD3080 CD4080 HeslyRope
100 x 173 CD10100 CD15100 CD20100 CD30100 CD40100 OW : Opening Width
120 x 242 CD10120 CD15120 CD20120 CD30120 CD40120 OH : Opening Height
160 x 277 CD10160 CD15160 CD20160 CD30160 CD40160 OG : Opening Guage
180 x 312 CD10180 CD15180 CD20180 CD30180 CD40180 α : 60° standard (Angle: 30° - 90°)
200 x 346 CD10200 CD15200 CD20200 CD30200 CD40200





Stretched

The Hesly rope mesh net can be stretched at 20°-90°,standard 60° angle.

Candurs Stainless Steel Wire Rope Mesh NetOpening Orientation

Customized wire rope mesh net's height and length.

HESLY Wire Rope MESH

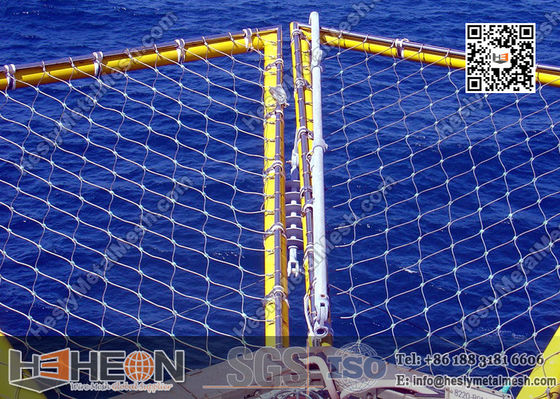

Reference Photos

Stainless Steel Wire Cable Mesh China Supplier  woven stainess steel wire rope mesh
Ferrule Stainless Steel Wire Cable Mesh Woven Stainless Steel Wire Rope Mesh
Oxide Coated Stainless Steel Wire Rope Mesh Chinese Supplier PVC Coated and Nylon Coated Stainless Steel Wire Rope Mesh
Oxide Coated Wire Rope Mesh PVC coated Wire Cable Net
Hand-made stainless steel wire cable mesh Webnet
Pure Hand-Made Pure Hand-Made
Woven Stainless Steel Wire Rope Mesh Stainless Steel Wire Cable Mesh
Hand Woven Hand Woven
China X-tend Wire Mesh Supplier China Flexible Wire Mesh Manufacturer
Package with carton Package with plywood box

How to order ?

  • Rope diameter + Opening : such as CD1560,CD3060 etc
  • Opening orientation : H or V
  • Edge : such as L10,L18,L24 etc
  • Piece height and length
  • Drawing is necessary if available
  • Order e.g. :CD1560 - 60° - H - L10 - Height x Length
  • Contact Us info@heslymetalmesh.com  +86 180 3181 5787
