358 High Security Anti Cut Mesh Panel Fening | RAL6005 Green Color | China Fence Factory
358 High Security Anti Cut Mesh Panel Fencing, also called 358 mesh panel fence & Prison Fencing, which is well-knowm as anti-climb & anti-cut through barrier with with excellent through visibility and resistance to vandalism.

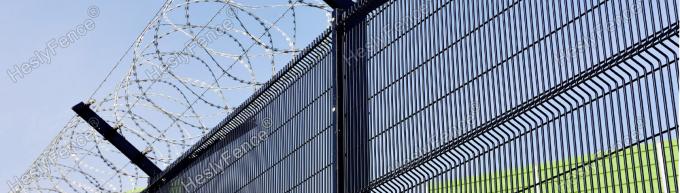

As a security fence, 358 Wire mesh fence is a special structure designed for high security environments, using high quality carbon steel wire to weld a fence panel, and its measurements 3" × 0.5" × 8 gauge which equates to approx. 76.2mm × 12.7mm × 4mm in metric. That is why sometimes we call it "358" mesh fence. This special mesh panels combined with an steel framework and concertina razor wire, can create a complete high security fencing system.
It can provide privacy in some extent. HESLY High Security Fences are used to give enduring and secure protection for the public buildings, commercial properties etc. High security fence can also be worked with electric alarm, detection systems (no blind spots for CCTV) etc. It is also widely used in military, airports, prisons etc.
General Specifications of 358 High Security Fence
|Fence||Panel Size||section||O/A Length||Clamp Bar|
|height||Height X Width|| || ||Clamp bar||Inters/Corners|
|m||mm||mm||mm||mm||1 / 2 Clamp bars|
|2.0||2007 x 2515||60x60x2.5mm||2700||2007x60x5.0||7/14|
|2.4||2400 x 2515||60x60x2.5mm||3100||2400x60x5.0||9/18|
|3.0||2997 x 2515||80x80x2.5mm||3800||2997x80x6.0||11/22|
|3.3||3302 x 2515||80x80x2.5mm||4200||3302x80x6.0||12/24|
|3.6||3607 x 2515||100x60x3mm||4500||3607x100x7.0||13/26|
|4.2||4204 x 2515||100x100x4mm||5200||4204x100x8.0||15/30|
|4.5||4496 x 2515||100x100x5mm||5500||4496x100x8.0||16/32|
|5.2||5207 x 2515||120x120x5mm||6200||5207x100x8.0||18/36|
Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.
The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.
Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.
The high quality advanced coating technology guarantees an extended product life span and low maintenance.
The superior welding technique and process control create a stronger fusion between the wires.
Supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.
|Anti-cut Hight Security Prison Fencing||High Security Anti-cut Mesh Fencing|
|Galvanised Mesh Panel||With Reinforced Bending Mesh Panel|
