HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory

Good quality Military Defensive Barriers for sales
Good quality Military Defensive Barriers for sales
Through your words I see a man of wisdom and a man with a great soul. I am grateful for your trust. and I checked the mesh, which is very good !

—— Francis Courrier

We got all the HESCO Barriers. It is good ! The customer is very happy for them ! We had a good deal !

—— Kazuyuki

I'm Online Chat Now

HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory

China HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier
HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory supplier

Large Image :  HESLY Airport Perimeter Fence | Concertina Razor Wire | 3m high | Y-shaped Post | HeslyFence China Factory

Product Details:

Place of Origin: Hesly (China) Fencing Solutions
Brand Name: HESLY
Certification: ISO9001 | SGS
Model Number: HAF550100

Payment & Shipping Terms:

Minimum Order Quantity: 100 m
Price: USD 15-30/m
Packaging Details: Steel/Plywood Pallet, Carton
Delivery Time: 7-20 work days
Payment Terms: T/T,, L/C, D/P at sight, Western Union
Supply Ability: 1000m/day
Contact Now
Detailed Product Description
Material: Low Carbon Steel Surface Treatment: Galvanised OR Powder/PVC Coated
Size: 2.5/2.7/3.0m(H) × 2.5/3.0m(W) Wire Mesh: Welded OR Woven
Accessories: Concertina Razor Wire

HESLY Airport Perimeter Fence

HESLY Airport Perimeter Fencing System is also known as “Y-Shape security fence”. It is strengthened by the v-shaped support arm and welded mesh, security fittings and hot-dip galvanized concertina razor wire to form a high level of strength and security. Airport Fence is widely used in airports, military bases and other high security sites.

On top of the airport fence is concertina razor wire which acts as a good enhanced safety barrier. By galvanization, polyester powder coating, airport fence has very good resistance to aging. It has sun-resistant, corrosion-resistant characteristics. Airport Fence is good looking in appearance. It can have various colors and it’s not only a fencing application but a perimeter decoration. Due to its high safety, good anti-climbing ability, mesh connections using special SBS tight fastener, it effectively prevent cases of human destructive disassembly. The four horizontal bend makes the mesh strength increased significantly.
Airport Fence has a wide range of application scenarios like airports, roads, railways and bridges on either side of the isolation area, ports, docks, parks, lawns, municipal construction, zoo, hotels, supermarkets, entertainment, etc.

Airport fence at the airport plays an important role in the airport construction. Airport fence is mainly used for the security and performance of the airport.

Genearal Description of HESLY Airport Fence

     1>> Height: the height of the airport fence, measure from ground to the top point of razor wire.

     2>> Width: the horizontal distance of airport fence, measure from center to center of the square post.

     3>> Wire Thickness: diameter of the low carbon steel wire of airport fence panel.

     4>> Mesh Size: the horizontal and vertical length of airport fence panel mesh.

     5>> Y Shape Post: a V shape post welded on the main post, for setting up the V panel and razor wire on top.

     6>> Clamp: special anti-UV plastic clamp for setting up the airport fence panel and post.

     7>> Hot Dipped Galvanized: dip the airport fence fence in to a container which is full of liquid zinc, to prevent the airport fence panels from getting rusty.

     8>> Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the airport fence panels from getting rusty.

Common Specification Sheet

Welded Mesh Panels and Top V mesh Panel
Panel Mesh Wire Thickness Surface Treatment Panel Width Folds NOS.

Panel

Height

Fence Height

Panel

Body

50x100mm

55x100mm

4.00mm

4.50mm

5.00mm

Galvanized and

Electrostatic polyester

coated or PVC coated

2.50m

3.00m

4 2000mm 2700mm
5 2300mm 3200mm
6 2600mm 3700mm
2 530mm 2700mm
V panel 630mm 3200mm
730mm 3700mm





SHS Steel Post
Profile Wall Thickness Surface Treatment Length Base Plate Cap

60×60mm

80×80mm

2.0mm

2.5mm

Galvanized and

Electrostatic polyester powder coated

2700mm I

+550mm V

Available

on request

Plastic or Metal

3100mm I

+650mm V

3600mm I

+750mm V





Profile Wall Thickness Surface Treatment Length Base Plate Cap

60x60mm

80×80mm

2.0mm

2.5mm

Galvanized and

Electrostatic polyester powder coated

1900mm /

+400mm I

Available

on request

Plastic or Metal

2200mm /

+500mm I

2500mm /

+500mm I



Concertina Razor Wire Coil
Type Core wire /Blade thickness Surface Treatment Length Out side diameter Clips
BTO-22 2.5/0.5mm Hot dipped galvanized 8-10m/roll 500mm 3 lines
600mm
700mm

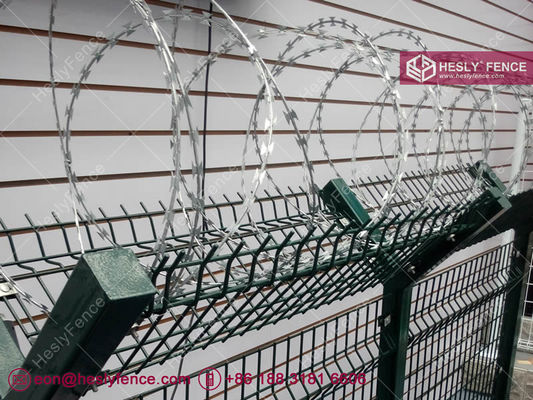

Reference Photos of HESLY Airport Fence
airport perimeter security fence airport security fencing China Factory
Airport Perimeter Fence Airport Security Fencing
welded wire mesh fence China Factory welded wire fencing HeslyFence China
"V" bracket 01 "V" bracket 02



HeslyFence® is China-Based Wire Mesh Fence Designer, Manufacturer & Exporter. Our products have been exported to more than 50 countries and regions. At HeslyFence, where you can purchase all of your temporary fencing and accessories for your project. With our quality service, you will receive:



>> ISO Certificated factory.

>> Quality products at the lowest price

>> Reliable advice from our friendly professional HeslyFence team

>> An efficient order process

>> Delivery to you in time.​

Pls don't hesitate to contact us for the fast quoted, Professional and Reliable service.
